SBP-2N
Key Features
- Simple configuration for easy installation and use
- It is possible to check the status output of the ionizer (operation status, high voltage or above, needle cleaning cycle)
Download
You will receive catalogues, manuals and leaflets.
Technical Support & Customer Support
Specifications
| Parameter | Description / Value | |
|---|---|---|
| Input Power | AC 100~240V, 50/60Hz | |
| Output Voltage | Pulse AC 13 kVp-p (Max.) | |
| Power Consumption | 30W | |
| Weight | 2.11kg | |
| Main Body Material | EGI | |
| Operation Circumstance | 0℃ ~ +50℃ (32℉ ~ 122℉), 35% ~ 85% RH | |
| Adjust Function | Frequency [Hz] | 0.1, 0.3, 1, 3, 5, 8, 10, 20, 30, 50 (10Steps) |
| Duty Ratio [%] | 40~70 (0.5단위) | |
| High Voltage [Level] | H : 1~10 (1단위) | |
| Interface | Remote On/Off, Run State, H/V Alarm State, RS485 | |
| Warranty | 1 year | |

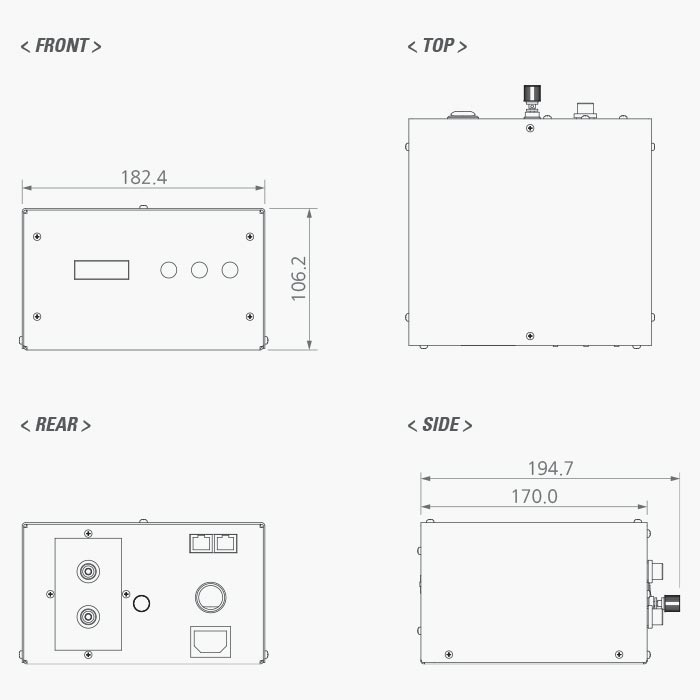

Dimensions
