※ The warranty period is One year from the date of purchase,Warranty usage time means cumulative lamp usage time Based on the
warranty period or warranty usage time that arrives first Consider the expiration of the product warranty expiration.
SVH-K24
It is a static eliminator using Vacuum Ultra Violet ray (VUV) that can remove static electricity in the decompression and inert gas environment. Simple Real-time On/Off control system minimizes unnecessary VUV exposure to the electrified object.
Key Features
- Eliminating Static electricity in inert gas such as N2, Ar, etc.
- Maximum antistatic performance under decompressed vacuum condition.
- Lower exothermic reation compared to the others minimize process affect.
- Minimize UV light exposure through real-time On/Off control.
- Head Fail and replacement alarm is displayed in real time.
Do you need any other haip?
Do you need product inquiries or technical support? lf you have any questions or concerns, please contact us here.
| Parameter | Description / Value |
|---|---|
| Radiant Wavelength Range | 100nm to 200nm |
| Window Material | MgF2 |
| Cooling Method | Air Cooling with Fan |
| Weight | 0.56Kg |
| Guaranteed Service Life | 1 Year (보증기간) or 2,000Hr (보증사용 시간) |
| Parameter | Description / Value | |
|---|---|---|
| Operation | Temperature | 1℃ to 40℃ |
| Humidity | 20% to 90% RH | |
| Storage | Temperature | -40℃ to 70℃ |
| Humidity | 90% RH | |
※ The appearance and specification of the product may be changed without prior notice for the improvement of the product.
Test Conditions
- Model : SVH-K24
- CPM Charge : ±1,000V to ±100V
- Measuring distance : 200mm ~ 2,000mm
- Vacuum range : 10- 6 torr
SVH-K24
Installation Conditions
-
- Vacuum space
- A place where there are no obstacles between the irradiation window and the charged object
- Where there is no vibration on the fixed object
- A place where there is no ignition and inflammables around
- A place where work space is secured for maintenance
- Where there are few floating objects or foreign objects around
Download Catalogue, Manual & Leaflet
Please click here to download various contents such as product catalog, product manual, product leaflet etc.
Technical Support
Do you need product inquiries or technical support? If you have any questions or concerns, please contact us here.
Telephone Consultation
If you can not find the information you want on our website, please call us at Please contact us or any inquiries.
- Features
-
SVH-K24
It is a static eliminator using Vacuum Ultra Violet ray (VUV) that can remove static electricity in the decompression and inert gas environment. Simple Real-time On/Off control system minimizes unnecessary VUV exposure to the electrified object.
Key Features
- Eliminating Static electricity in inert gas such as N2, Ar, etc.
- Maximum antistatic performance under decompressed vacuum condition.
- Lower exothermic reation compared to the others minimize process affect.
- Minimize UV light exposure through real-time On/Off control.
- Head Fail and replacement alarm is displayed in real time.
Do you need any other haip?
Do you need product inquiries or technical support? lf you have any questions or concerns, please contact us here. - Specification
-
Parameter Description / Value Radiant Wavelength Range 100nm to 200nm Window Material MgF2 Cooling Method Air Cooling with Fan Weight 0.56Kg Guaranteed Service Life 1 Year (보증기간) or 2,000Hr (보증사용 시간) ※ The warranty period is One year from the date of purchase,Warranty usage time means cumulative lamp usage time Based on the
warranty period or warranty usage time that arrives first Consider the expiration of the product warranty expiration.
Parameter Description / Value Operation Temperature 1℃ to 40℃ Humidity 20% to 90% RH Storage Temperature -40℃ to 70℃ Humidity 90% RH ※ The appearance and specification of the product may be changed without prior notice for the improvement of the product.
- Decay Time Characteristics
-
Test Conditions
- Model : SVH-K24
- CPM Charge : ±1,000V to ±100V
- Measuring distance : 200mm ~ 2,000mm
- Vacuum range : 10- 6 torr
SVH-K24

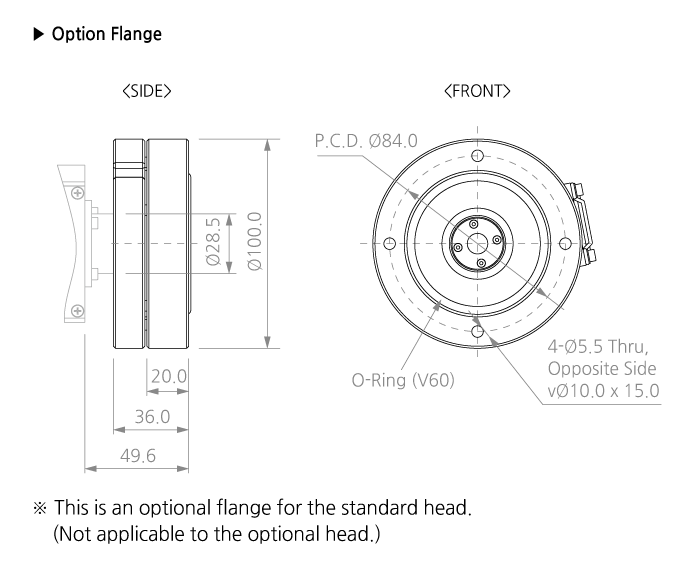

- Dimensions
-
- Head Installation Conditions
-
Installation Conditions
-
- Vacuum space
- A place where there are no obstacles between the irradiation window and the charged object
- Where there is no vibration on the fixed object
- A place where there is no ignition and inflammables around
- A place where work space is secured for maintenance
- Where there are few floating objects or foreign objects around
-
