SCM-10A

Key Features

다양한 환경에서 이오나이저의 성능을 실시간으로 모니터링
협소한 공간에도 설치 가능하며 다른 장비와의 통합이 용이
PC 프로그램을 통한 데이터 관리
3.97인치 LCD
RS485 및 이더넷 통신 지원으로 장거리 전송 가능
다양한 운영 환경에 맞춰 측정 간격을 사용자 지정 가능
최대 8대의 CPM을 동시에 모니터링 가능
두 가지 운영 모드 (독립형 / 소프트웨어)

Download

카탈로그와 매뉴얼 및 리플렛을 받으실수 있습니다.

기술지원 및 고객센터

Specifications

Parameter		Description / Value
Performances	Monitored Voltage Range	0 to ±1100 VDC or peak AC
	Decay Mode Thresholds	Start Voltage	Programmable from 100 to ±1000 V in 10 V increments
		Start Accuracy	Within ±1 V of programmed start voltage
		Stop Voltage	Programmable from 10 to ±100 V in 1 V increments
		Stop Accuracy	Within ±1 V of programmed stop voltage
		Discharge Time Resolution	0.1 sec
Mechanical	Dimensions (H x W x D)	43.7 x 135 x 165 mm
	Weight	0.9 kg
	Voltage Monitor	BNC Connector (3 m length maximum)
	Ground Receptacle	Binding ground post
	Cable from Instrument to Floating Plate	Coaxial type; Standard plate, diameter is 5.6mm (0.22in); length is 3m (10ft) Mini plate, diameter is 2.8 mm (0.11in); length is 3m (10 ft)
Electrical	Input Power	xternal Adaptor(24VDC, 1.75 A) or Battery(Option)
Features	LCD Display	3.97inch LCD displays graphical readouts, numeric data, informational data, programming parameters and retrieved data
	Analysis Resolution	12 bits
	Mode Select / Programming	Allows multiple operational and programming options. Can be preset to perform a number of automated tests and is available to store or retrieve previously defined test parameters. Test locations and results can be saved and retrieved for future reference.

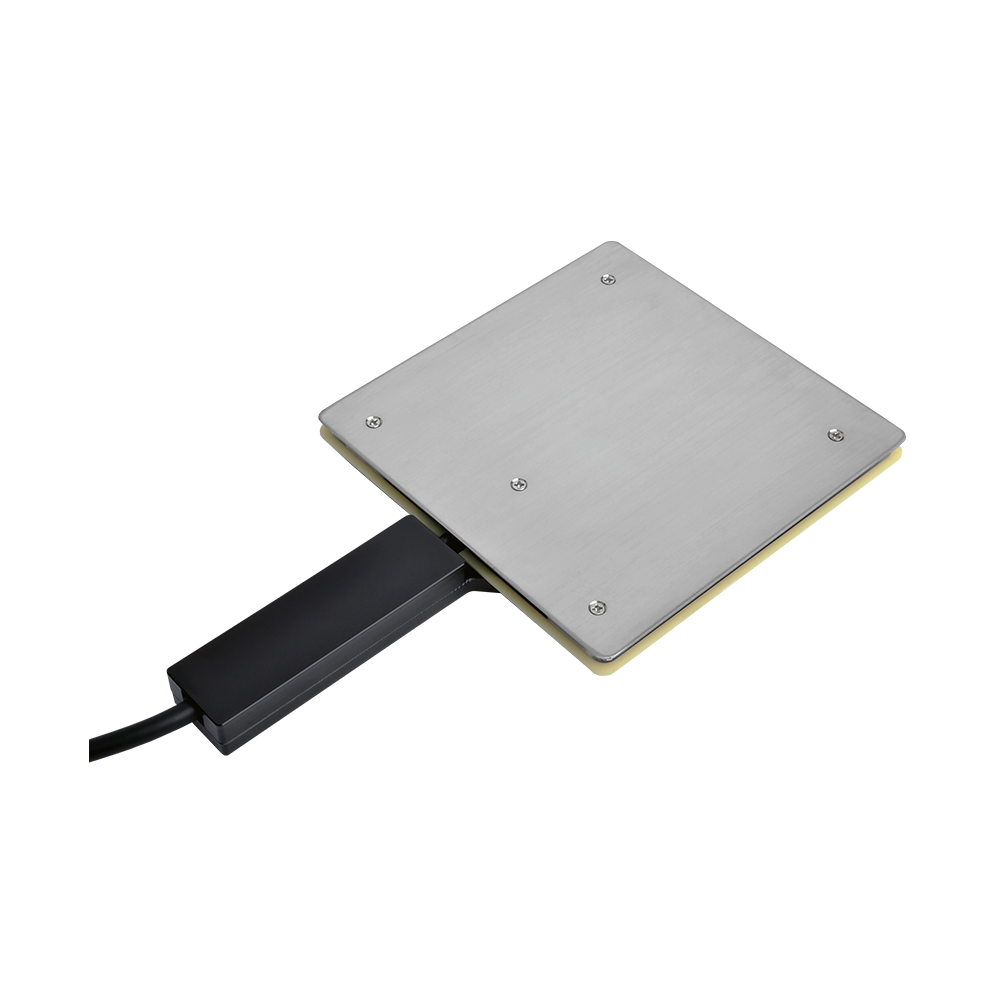

	Ion Collecting Plate	Meets ANSI/ESD-STM3.1 requirements
	Decay mode	The ion collecting plate is charged to a voltage level above the programmed start voltage value. The plate is allowed to decay toward zero due to the ion impingement on the plate. The time required for the plate to decay from the programed start voltage to the programed stop voltage is displayed on the timer. (+)Decay 1st, (-)Decay 2nd.
	Balance mode	The charged plate monitor is reset to 0 V ±0.5 V. The plate is allowed to “float” to a voltage level dictated by ion impingement on the plate.
	Remote control / monitoring	Can be used in a daisy chain configuration with up to 8 devices connected via the Modbus protocol
Warranty		1 Year
